REMINDER: Horus 48 Telemetry Test from Mt Lofty TOMORROW

Posted on by

THOR Receiver Tune & Test Day – Sunday 4th March ~10:30AM CDST

To help stations adapt to the new THOR16 signal, this coming Sunday there will be the opportunity for stations in the Adelaide metropolitan area to set up dl-fldigi as per the linked guide below and have a go receiving a higher-power version of the THOR16 signal. This will be broadcast from Mt Lofty Summit by Mark VK5QI. Mark will be on the VK5RSB 70cm repeater (439.900 -5MHz / 91.5Hz CTCSS) as ‘technical support’, to help assist setting up the software. The signal should be easily receivable from the Adelaide Metro area and some surrounds.

Look for the test signal on 434.640MHz

DL-FLDIgi Setup for THOR16

As usual, use dl-fldigi to decode telemetry, but in the case of the THOR16 payload, you will have to manually select the operating mode from the drop-down list as follows:



ADVANCE NOTICE – Horus 48 – Telemetry Test Flight & Test Transmission

Posted on by

On the weekend of the 10-12th of March (exact day TBD), Project Horus will be performing a small (not-so-)high-altitude balloon launch from Mt Barker. The flight will be a short one (~1.5 hrs), with a maximum expected altitude of only 13km. All the payloads have been custom-built to be very lightweight – the total payload mass for this launch is < 300 grams!

The aim of this flight is to evaluate the performance of a new telemetry payload, which uses ‘THOR16‘ modulation. While about half the speed of the current RTTY payload, the THOR modes utilise forward error correction and interleaving. This promises to reduce or remove issues with mobile flutter and multi-path fading that we encounter with RTTY. In short, while we may not be getting telemetry sentences quite as often, we will have a much higher chance of the telemetry that is received being useful to us!

THOR Receiver Tune & Test Day – Sunday 4th March ~10:30AM CDST

To help stations adapt to the new THOR16 signal, this coming Sunday (a week prior to the launch) there will be the opportunity for stations in the Adelaide metropolitan area to set up dl-fldigi as per the linked guide below and have a go receiving a higher-power version of the THOR16 signal. This will be broadcast from Mt Lofty Summit by Mark VK5QI. Mark will be on the VK5RSB 70cm repeater (439.900 -5MHz / 91.5Hz CTCSS) as ‘technical support’, to help assist setting up the software. The signal should be easily receivable from the Adelaide Metro area and some surrounds.

Look for the test signal on 434.640MHz

Horus 48 Launch Campaign – Tentative 10-12th March

For the actual launch the following weekend, the telemetry frequencies for the flight are as follows:

  • RTTY – ‘HORUS’ – 434.650 MHz
  • THOR16 – ‘THORUS’ – 434.640 MHz

Both payloads are running 10mW transmit power, and have essentially identical antennas.

DL-FLDIgi Setup for THOR16

As usual, use dl-fldigi to decode telemetry, but in the case of the THOR16 payload, you will have to manually select the operating mode from the drop-down list as follows:

If you have the capability of running two 70cm receivers, please consider running two instances of dl-fldigi to decode both payloads. This may require either multiple PCs, or multiple sound cards. If you can only run a single receiver, please try and alternate between the different telemetry payloads.

We would very much appreciate reports as to your experiences decoding the different telemetry payloads – please e-mail these through to vk5qi@rfhead.net

Tracking for the launch will be available on the HabHub online tracker. We hope to see you as part of the tracking nets!



73 de Mark VK5QI





Horus 47: SHSSP 2018 Science Flight Report

Posted on by

Following unfavourable weather conditions the previous weekend, the Amateur Radio Experimenters Group planned a second attempt to fly the science payloads for the Southern Hemisphere Space Studies Program 2018 on Sunday February 4th. Again, the weather was not cooperating, which forced a change of the launch site in order to get off the ground. This meant a very early start as the launch teams left Adelaide at 7.00am to trek 150km east of the city into the Murray Mallee.

This flight was carrying a number of science experiments for the SHSSP students. This year the focus was on space navigation, so one particular focus was using the GPS data coupled with an initertial measurment unit to be able to plot the angle and direction of the camera taking the photos. The other experiment was a spectrometer which was measuring the precise wavelengths of light.

SHSSP18 Downward facing camera (courtesy UniSA and SHSSP)

Launch Preparation

Launch preparations began about 9am after the crew had arrived at the launch site. Thanks must go to Chris VK5CP who arranged access with the farmer who’s paddock we borrowed for the morning. Along the way the obligotory bakery stop had been made in the township of Mannum (I can vouch for their blueberry scrolls). Today we had a couple of new faces on the flight team, with Marcus VK5WTF and Mark VK5QN stepping in to give us a hand. Also on site was Mark VK5QI (Payload), Grant VK5GR (Balloon) and Will VK5AHV (Balloon). The team laid everything out and commenced assembling both the balloon train and the filling apparatus.

At the same time, Grant VK5GR started up his frist time chase vehicle and coaxed all of the linked software systems to life. Thanks to some loaned antennas from Matthew VK5ZM and LoRa receivers from Mark VK5QI, Grant was able to establish a full telemetry and tracking suite in just a matter of days to help assist with the chase.

Marcus filmed the proceedings too and you can see a short timelapse here of inflating the balloon.

Meanwhile, Mark VK5QN and Mark VK5QI (yes that did get confusing) assembled the balloon train. Mark VK5QN with his climbing and scouting background did a professional job of tying the balloon train together. You are most welcome to come again Mark!

Lift-Off

Finally the time came for liftoff. Mark VK5QI checked in with ATC Melbourne and we were given our clearance to fly. The team raised the balloon train and was thankful that we had almost zero ground winds. Mark did a final check that all the payloads were transmitting using a new handheld flight status monitor he had been working on and gave the the green light to commence countdown.

Grant VK5GR then released the balloon and we witnessed a near text book launch. As it climbed, the balloon hit it’s ascent target speed of 5m/s and everything looked good for a successful flight. The ground teams then scrambled to pack everything away and get rolling. It was going to be a long chase, with the landing zone predicted to be up in the north eastern Barossa Valley, and a detour around the River Murray required past Bow Hill and up to Blanchtown so that delays on the river car ferrys could be avoided.

Tracking Control

Meanwhile 58km to the north west, the ground tracking crew of Peter VK5KX and Darin VK5IX were awaiting signal aquisition as the balloon cleared the horizon. They had lots of signals to track this flight, including the 100 Baud RTTY, the LoRa Telecommand system and two Wenet Imaging payloads. Peter again setup his automated tracking antenna (seen on the previous week’s flight) and with Darins help was able to collect and upload to the internet the image signals from both payloads.

Peter took the following video of the Wenet systems in action

The Chase

Meanwhile, back in the two chase cars, Marcus VK5WTF, Mark VK5QI and Will VK5AHV headed out first and made the dash up to the valley.

Mark VK5QN and Grant VK5GR had a slightly slower start, as they had to first drop the gas trailer at a staging point in Younghusband before they too could join the chase.

Wenet Images

This was the first time the balloon and been flown this far NE of Adelaide so it was great to see some different angles of the state. The weather was nearly perfect as well with hardly a cloud in the sky. These photos were taken by the AREG Wenet payload with an outward facing camera.

This slideshow requires JavaScript.

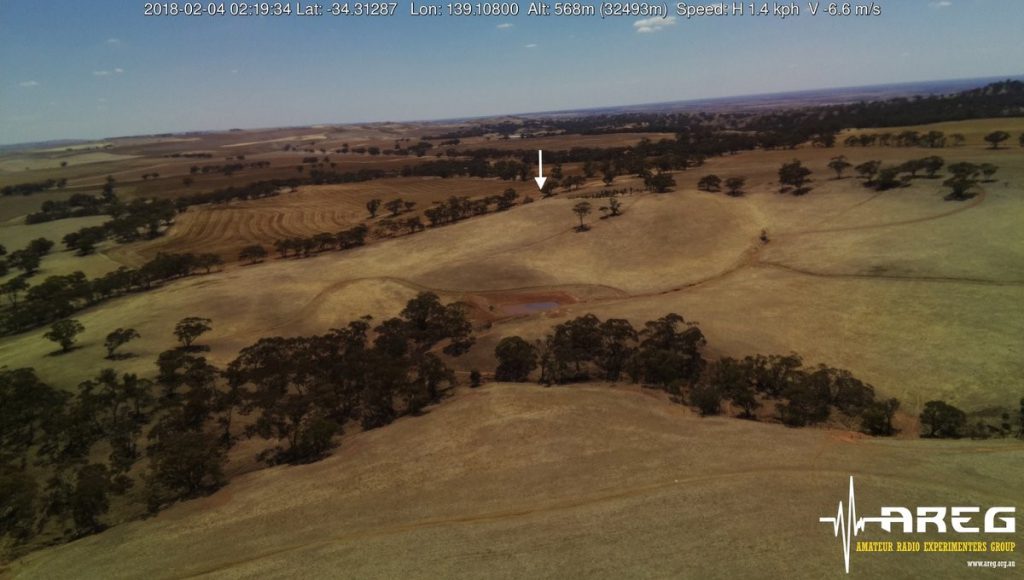

One of the last photos actually captured a shot of Mark VK5QI’s chase car as the team was fortunate to be in visual range of the landing.

Grant’s team wasnt quite so lucky due to a software issue involving timezones and the prediction tools and he didnt make it to the landing zone until about 5 minutes after it landed.

Once the balloon landed, both teams met up with the local land owner before being given permission to drive in and pick up the payloads. We were very lucky that the balloon landed approximately 100m from the access track in an empty stubble field. Definitely one of the easier recoveries of recent times!

After we bid farewell to the land owner it was off back home – of course via another bakery (this time in the main street of Truro). Mark’s chase team had the luxury of being able to head straight back to Adelaide. Meanwhile Grant had to return to Younghusband to pick up the gas bottles and trailer. For the VK5GR team it was nearly a 600km 10.5hr round trip this time.

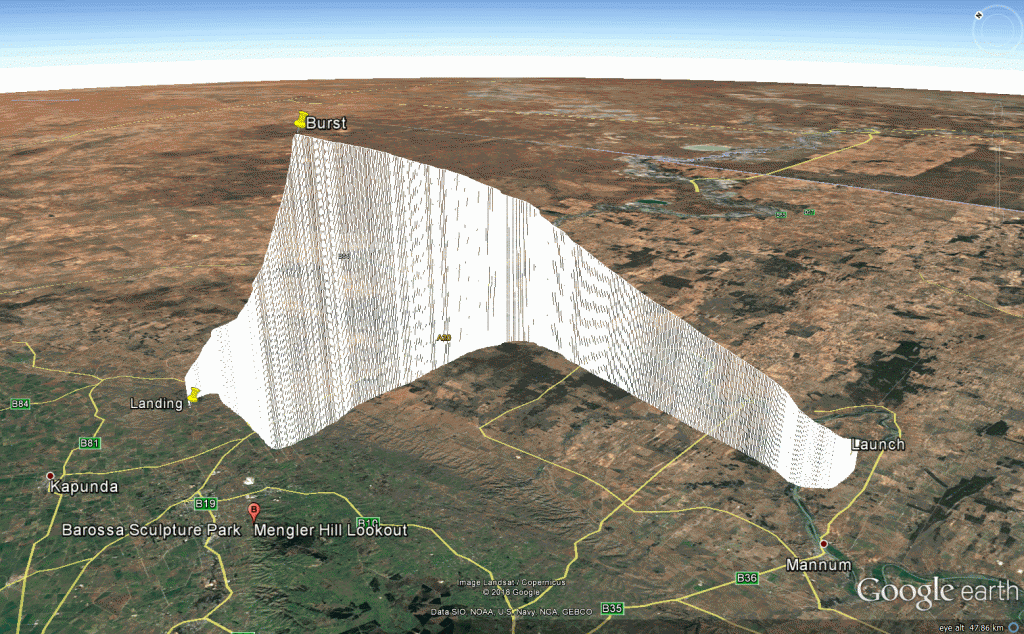

Flight Path & Statistics

Horus 47 flew an interesting course this time. This is a rather uncommon flight track for the AREG team.

The flight statistics are below

MetricResult
Flight Designation:Horus 47 - SHSSP18 #2
Launch Date:04/2/2018 23:59:04 UTC
Landing Date:04/2/2018 02:19:52 UTC
Flight Duration:2 Hours 30 Minutes
Launch Site:-34.878614 139.492314
Landing Site:-34.313174 139.107985
Distance Traveled:72.7 km
Maximum Altitude:32,507 m

Again many amateurs from across the state got involved in telemetry collection. We wish to thank everyone who took part as you all help make the chase and recovery more successful.

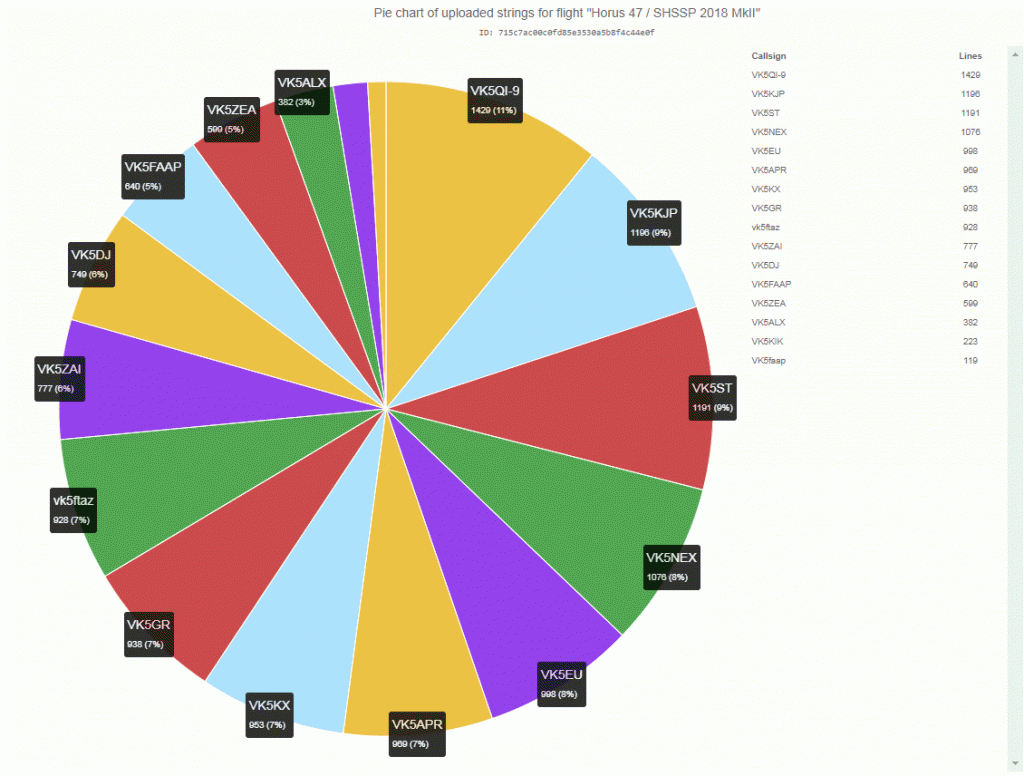

The following is the chart of who contributed to the telemetry gathering effort:

Thanks goes to the following who contributed: VK5QI, VK5KJP, VK5ST, VK5NEX, VK5EU, VK5APR, VK5KX, VK5GR, VK5FTAZ, VK5ZAI, VK5DJ, VK5FAAP, VK5ZEA, VK5ALX, VK5KIK

A few stations also contributed to receiving the Wenet digital imaging downlinks. These stations were:

SHSSP1 Payload

  • VK5APR: 145509 packets (35.52 MB)
  • VK5WTF: 91884 packets (22.43 MB)
  • VK5EU: 146129 packets (35.68 MB)
  • VK5DSP (UniSA Team): 133871 packets (32.68 MB)
  • VK5KX: 99419 packets (24.27 MB)

VK5ARG Payload

  • VK5QI: 198691 packets (48.51 MB)
  • VK5KX: 185197 packets (45.21 MB)

Conclusion

So that marks the end of the story for the Southern Hemisphere Space Studies balloon launch program for 2018. We hope everyone had a great time and again thank everyone who contributed or participated in making the flights possible!

73 till next time de VK5ARG

Acknowledgements: Thanks to VK5QI, VK5QN, VK5GR, VK5WTF, VK5KX, VK5IX, VK5AHV and SHSSP for all the material in this report.

Horus 46: International Space University – Jan 2018

Posted on by

The Amateur Radio Experimenters Group teamed up again this year with the International Space University’s Southern Hemisphere Space Studies Program to simulate a space mission using Helium fueled high altitude balloons.

The Southern Hemisphere Space Studies Program is an intensive, five week, live-in experience built around an international, intercultural, and interdisciplinary (3 “I”s) educational philosophy for which the International Space University (ISU) is renowned. The program provides a multidisciplinary understanding of the key activities and areas of knowledge required by today’s space professions, including:

• Space science and exploration
• Space applications and services
• Human spaceflight and life sciences
• Space systems engineering and technologies
• Space policy and economics
• Space business and project management and
• Space law and regulatory issues

The Balloon Mission – 2018

The original plan was to fly a multi-faceted ‘heavy’ mission that included downward as well as outward facing cameras, inertial measurement units reporting the camera orientation (so that the photos could be plotted and stitched together after the flight) and a spectrometer studying atmospheric gas makeup.

Unfortunately the weather was not cooperating, with flight paths landing in severe bush-fire rating zones within the Adelaide Hills, a risk the AREG team were not willing to take. So, at the 11th hour, the plan was re-cast to collect only outward images, without the flight termination devices on board, using disposable payloads. Thus, Horus 46 was born and flew on the 28th of January.

Predicted Flight track before launch

The Launch



(Video provided by Timothy Ryan @AstroTimOz)

The launch teams arrived at Serefino WInery at 8.00am and by 8:10am we had selected the launch and tracking sites. This year, due to the very calm ground winds we were able to lift off from the front lawns. The SHSSP students then helped with preparing the flight and filling the balloon. Grant VK5GR led the filling operations, aided by Josh VK5JO and WIll VK5AHV  while Mark VK5QI tended to the payloads, Peter VK5KX and Bill VK5DSP tended to the ground station receivers and Matt VK5ZM (club president) secured the balloon train and handled the publicity aspects of the event for AREG.

Telemetry and Images

Telemetry collection was vitally important for this flight as it represented about the only way that we were getting pictures back from the balloon. To this end, we again enlisted the help of Peter VK5KX and Bill VK5DSP who provided the primary image downlink stations for the day.

Mark VK5QI’s X-Quad antenna from Wimo generated a lot of interest as well as the tracking rig which now takes GPS data from the telemetry and computes the correct azimuth and elevation to aim the antenna at to receive the balloon. Lots of work went into that system by multiple club members so it was great to see it out in anger.

Back in Adelaide, Peter VK5APR and Graeme VK5EU also made major contributions. The Wenet telemetry scoreboard in the end was:

  • VK5KX: 275015 packets (67.14 MB)
  • VK5APR: 153431 packets (37.46 MB)
  • VK5DSP: 13682 packets (3.34 MB)
  • VK5EU: 89418 packets (21.83 MB)
  • VK5QI: 200777 packets (49.02 MB)

Tracking the RTTY payload required some finesse this time as it was an original Micronut complete with AFSK spacing and frequency drift issues of old. None the less multiple stations were able to contribute to the flight data collection.

What the Balloon Saw

The most spectacular aspect of any of these flights are the pictures collected from the high altitude cameras. These never get old and this flight did not disappoint.

This slideshow requires JavaScript.

(Slideshow from the flight)

The final flight track looked as follows

The flight stats are as follows:

MetricResult
Flight Designation:Horus 46 - SHSSP18 #1
Launch Date:27/1/2018 23:39:30 UTC
Landing Date:28/1/2018 01:58:43 UTC
Flight Duration:2 Hours 19 Minutes
Launch Site:-35.22103 138.55374
Landing Site:-35.38075 139.1722
Distance Traveled:58.8 km
Maximum Altitude:21,213 m

Attempted Recovery

As with all flights, there is a degree of uncertainty. So with Horus 46, while the expectation was that we wouldn’t be recovering this one, none the less an attempt was going to be made. Mark VK5QI set out with Will VK5AHV to track and attempt recovery anyway.

For a while it was looking positive, but alas this balloon “exceeded specifications” in a most annoying way. It flew higher than planned, in fact nearly 4km higher, which shifted the final landing zone well and truly into the waters of Lake Alexandrina.

Conclusion

A big thank you is again owed to everyone who contributed to the flight either through direct flight operations or through telemetry gathering. Stay tuned as we are still hoping to fly the main scientific payloads next weekend (weather permitting).

Horus 46 High Altitude Balloon Launch Sunday 27th

Posted on by

 The Amateur Radio Experimenters Group has been again asked to support the Southern Hemisphere Space Studies Program for the International Space University in 2018. Held in conjunction with the University of South Australia in Adelaide, this year AREG is launching one balloon for the group carrying a variety of sensors and cameras. The students this year are focusing on space navigation and will be attempting to take the GPS and 9DOF orientation sensor data from the payload to pinpoint where in space the photos were taken from, and then overlay them like a checkerboard over the ground.

The flight will lift off at 10:00am ACDT on the 28th of January from Serefino Winery east of McLaren Vale.

Tracking of the flight will be available on the HabHub Tracker, available at this link. (Note that other balloon launches will also be visible on this page, including the Bureau of Meteorology launches from Adelaide Airport).

Live Imagery from the launch will be available at this link: http://ssdv.habhub.org/VK5ARG

Payload Telemetry Details

UPDATE: Due to the weather, there is now only one camera payload (as well as the RTTY and tele-command systems) planned for this flight, with a much lower planned burst altitude (~17km instead of 30km). This is because of the flight path and recovery concerns in the face of Severe fire-ban and harsh weather forecasts.

  • Primary Telemetry:   434.650MHz +/- 5 KHz RTTY 100 baud 8N1
  • Imagery Payload:   441.2MHz FSK 115k2 baud Wenet

As always we can use the help with receive stations copying the telemetry and pushing this to the internet for us. If you have a Wenet capable ground station please concentrate on the 441.2MHz downlink to maximise the data we collect for the university.

The auto-configure feature within dl-fldigi will automatically configure these settings for you once you pick the correct flight (‘Horus / SHSSP 2018’). The UKHAS tracking guide provides the information you need to set up a RTTY receiver:  https://ukhas.org.uk/guides:tracking_guide

Note that the RTTY payload on this launch is one of our ‘vintage’ MicroNut payloads, and is expected to drift a few kHz during the flight. dl-fldigi will keep track of the signal if it’s within your receiver’s passband, but you may need to re-tune during the flight.

Information on setting up to receive the Wenet imaging payload is available here: https://github.com/projecthorus/wenet/wiki/Wenet-RX-Instructions-(Ubuntu-Debian)

Note that this is a few orders of magnitude more complicated than setting up for RTTY, and requires a machine running a recent version of Ubuntu, some Linux experience, and a RTLSDR+Preamp. You also need to be within 100-150km of the balloon to receive sufficient signal.

The Flight Path

This flight is not ideal as it is landing in the Adelaide Hills, an area that can make recovery difficult for multiple reasons. The planning group are watching this very closely.

A note on the Weather

With the weather in the high forties this coming weekend if the CFS issue a Severe or higher fire ban on Saturday at 4pm then the flight will be scaled back or cancelled. It is possible a light weight disposable flight may still run (without the expensive scientific payloads) so we will still be looking for tracking. It all depends on the flight path and the fire ban status issued by the CFS. A final call will be made Sunday morning and will be posted to the AREG Website before launch.



Willunga High School Launch – Success!

Posted on by

This slideshow requires JavaScript.

On the 7th of December 2017, members of Project Horus participated in the successful launch of the Willunga High School’s 2017 balloon launch. This year Willunga High School was participating in a ‘Balloons Without Borders’ exchange program with the United States ‘Near Space Systems’ – Near-Space Systems would launch Willunga High School’s payload, and the US payload would be launched here in Australia. The US payload contained cameras and various atmospheric sensors.

NearSys BalloonSat Payload

The chase team consisted of Mark Jessop VK5QI, and Matthew Scutter, the developer of SkySight.io, a weather prediction service that Project Horus has made use of many times for launch-day weather predictions. This was Matthew’s first balloon chase, and as is custom, he got thrown straight into the deep end acting as navigator and operator of the chase car software.
Mark describes the launch day as follows:
We launched right ahead of a cold front that was moving in, which threatened to make the flight challenging. During my drive to the launch site I encountered large areas of showers, however the Willunga area stayed clear for quite a while.
The winds did start to pick up during launch preparations, but were not strong enough to make the launch difficult. We ended up with a total payload mass (combined across the 2x telemetry payloads, 1x Wenet imagery payload, and the BalloonSat) of approximately 1300g.
The flight proceeded pretty much as planned, with an average ascent rate of 5.2m/s. The payload’s ground speed was observed to reach 200kph at some points during the flight. The balloon was cut away at just under the predicted burst altitude of 30km, in an attempt to bring the landing site closer towards the Dukes Highway, a major highway running through the region. The maximum altitude was 29949m.
The descent rate was faster than expected, around 10m/s on landing. This turned out to be due to one of the payloads tangling with the parachute, causing it to not open completely. This brought the landing location a bit further away from the highway, and made the descent portion of the flight too fast for the our lonesome chase team to get to the landing site in time to watch the landing.
We arrived about 20 minutes after landing to find the payload in a large, recently cropped field, about 200m from a road. Shortly after we departed, the cold front arrived and the rain started – we had recovered just in time!
All the payloads were recovered in good condition, in spite of the faster-than-expected landing. Constructing the payloads from lightweight expanded polystyrene does have its advantages!
The live Wenet imagery didn’t perform too well, mainly due to lack of receivers. I had a receiver running in my chase car, and Graham VK5EU did a great job of receiving from home.
Thanks also go to VK5HS, VK5APR, and VK5NEX for decoding the RTTY telemetry throughout the flight!
 The flight profile and chase vehicle tracks can be seen here.
The flight statistics are:
MetricResult
Flight Designation:WHS-December 17
Launch Date:07/12/2017 00:11:45 UTC
Landing Date:07/12/2017 02:08:09 UTC (Approx)
Flight Duration:1 Hour 57 Minutes
Launch Site:-35.262946 138.555586
Landing Site:-35.755356 139.736493
Distance Traveled:124.8 km
Maximum Altitude:29,904 m
Thanks to everyone involved in yet another high altitude balloon flight!

Horus 44: Flight Report – Riverland BRL Field Day

Posted on by

On April 22nd 2017, the Amateur Radio Experimenters Group conducted an Amateur Radio focused balloon launch from the Riverland Radio Club’s VK5BRL Weekend event at Overland Corner Hotel in the Riverland. This launch was carried out to bring some interesting amateur radio based experiments to a new audience, and also to encourage more tracking stations to take part in Project Horus from the Riverland region (which is often a landing ground for the flights from the Adelaide Hills).

Ground Control

The launch campaign began at 9.00am with Bob VK5FO and Ray VK5RR helping Ivan VK5HS set up the balloon ground control station at the BRL Weekend event.

Horus 44 was the first flight of a new 2m/70cm voice repeater so we also were making contacts through the balloon using the VK5WOW special event callsign throughout the flight, promoting the Wireless Institute of Australia’s AGM which was being held in VK5 a few weeks later.

Launch Crew

Meanwhile the ground crew started preparations to launch the payloads. AREG members Matt VK5ZM, Mark VK5QI, Grant VK5GR, Darin VK5IX and Kim VK5FJ worked on assembling the payload train and filling the balloon with helium.

The predicted flight track was to take us east, to land tot he north west of Renmark. We certainly hoped is would follow that track, as there were many inaccessible obstacles in the Murray River marshlands area.

Lift Off

We were going to find out soon enough! Lift off was a text book effort, and straight away people were accessing the repeater, able to make contacts with VK5WOW. The only issue noticed early on was that the repeater’s receive filters were very narrow, enough to cause the mute to shut if you spoke to loudly. Even with that issue, contacts streamed through think and fast.

Once in the air, the repeater ran hot. The following stations made contact with VK5WOW via the balloon:

[table “” not found /]

The repeater footprint continued to expand, and just reached Melbourne before the balloon burst.

WENET brings Superb Pictures

In addition to the voice repeater, the WENET camera payload also flew collecting stunning images of the Riverland region from the air.

This slideshow requires JavaScript.

Chase & Recovery

Meanwhile the chase teams had driven to Renmark and were watching intently as the balloon progressed along its path.  The two AREG teams were joined this time by Peter VK5PE and a crew from the Riverland Radio Club. The local knowledge they brought to the chase was invaluable!

At one stage we became quite nervous as it appeared it may actually land in the marshes. However, the winds once again became favorable and the landing zone looked very good indeed.

Recovery occurred after a short hike into a local conservation park, but not before we watched the balloon descend gracefully from about 1500m elevation!

Flight Statistics

The fight track for Horus 44 shows that there were fairly light high altitude winds on this day. Once clearing the ground winds the flight profile was remarkably vertical.

The detailed flight statistics are:

MetricResult
Flight Designation:Horus 44 - BRL Weekend
Launch Date:22/4/2017 01:36:17 UTC
Landing Date:22/4/2017 04:25:41 UTC
Flight Duration:2 Hours 49 Minutes
Launch Site:-34.153467 140.339623
Landing Site:-34.107695 140.651783
Distance Traveled:29.1 km
Maximum Altitude:29,953 m

This time we saw major contributions from many of our ground stations too. The following pi-chart shows who collected telemetry for this flight.

Conclusion

It was a very successful flight! A huge thank you again to everyone who was involved, and in particular to the Riverland Radio Club for the invitation to come and fly from their back yard. Thanks also to the AREG members who traveled and stayed in the Riverland to fly Horus 44, with a special thanks to Sharon VK5FSAW who once again helped with logistics through catering the lunches for those chasing the balloon!
