AREG has become one of the principal supporters of the VK5 central state repeater network. Two key AREG sites now provide essential coverage and hub services for the core of the network, with our VK5RSB repeater at Summertown acting as the central Adelaide Hub repeater while our VK5RSA repeater located atop one of Adelaide’s tallest CBD buildings provides premium coverage across the greater Adelaide plains and into the Adelaide foothills.
AREG has entered into a sponsorship agreement with KernWi-Fi, who are supporting the club by facilitating access to one of the premier communications sites in the Adelaide CBD atop Westpac House. At 134m high, this site is on one of the highest buildings in the city! AREG wishes to express it’s sincere thanks to Phil Kern (VK5ZEY) for his support of the VK5RSA repeater. It has been a dream of the club to gain access to the site for nearly 20 years and it is great to see it finally come to fruition.
The repeater itself has been rebuilt by Paul VK5BX & Dean VK5HMV, and was installed by Dean VK5HMV and Shane VK5NRV over this past weekend. This was the culmination of 9 months of discussions and planning by the AREG Committee, members on the repeater sub-group and the Kern WiFi team.
VK5RSA operates on
438.025MHz (-7MHz input)
with 91.5Hz CTCSS
But Wait – there’s more!
In addition to being installed atop one of the highest buildings in Adelaide, VK5RSA is now part of something much bigger. It has now joined the growing Central South Australian repeater network, which provides coverage over most of central SA.

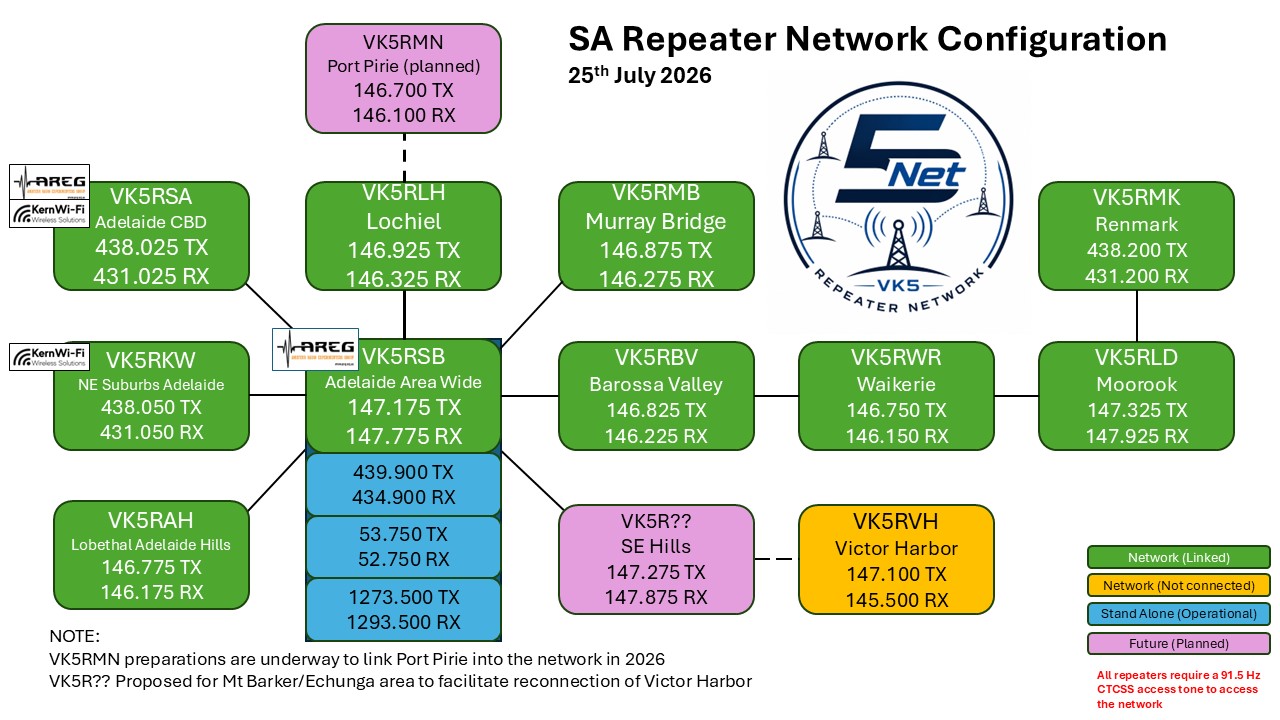

The repeaters in the network are:
| Location / Area | Callsign | Output | Input Offset | CTCSS |
|---|---|---|---|---|
| Adelaide Area | VK5RSB | 147.175MHz | +600 kHz | 91.5Hz |
| Adelaide Plains | VK5RSA | 438.025MHz | -7MHz | 91.5Hz |
| Adelaide NE | VK5RKW | 438.050MHz | -7MHz | 91.5Hz |
| Adelaide Hills (Lobethal) | VK5RAH | 146.775MHz | -600kHz | 91.5Hz |
| Adelaide Hills (Mt Barker) | VK5R?? | 147.275MHz | +600kHz | (Planning) |
| Barossa Valley | VK5RBV | 146.825MHz | -600kHz | 91.5Hz |
| Central North (Lochiel) | VK5RLH | 146.925MHz | -600kHz | 91.5Hz |
| Mid North (Port Pirie) | VK5RMN | 146.700MHz | -600kHz | (Planning) |
| Mt Bevor / Murray Bridge | VK5RMB | 146.875MHz | -600kHz | 91.5Hz |
| Victor Harbor | VK5RVH | 147.100MHz | -1.6MHz | (Disconnected) |
| Riverland (Waikerie) | VK5RWR | 146.750MHz | -600kHz | 91.5Hz |
| Riverland (Moorook) | VK5RLD | 147.325MHz | +600kHz | 91.5Hz |
| Riverland (Renmark) | VK5RMK | 438.200MHz | -7MHz | 91.5 Hz |
NOTE: With the network access comes a change in mind set for operators too. For all 14 repeaters to operate together, it is important for users to leave at least a 1 second gap after the repeater tails before transmitting. This will give sufficient time so that all of the transmitters and receivers can sequence correctly thus preventing one or more repeaters from being locked out.
The nominal best areas to access each repeater are shown here:
Strongest Serving Repeater Map (Note Victor Harbor not shown)
The coverage of the system is expected to be second to none in this part of the state. AREG hopes by making VK5RSA part of this network that it will help bring amateurs together on VHF/UHF and will drive new activity on these bands!
We look forward to hearing you on VK5RSA and the link network! Come and give it a go….
