Horus 47: Set to Fly on Sunday 4th Feb for SHSSP!

After the successful Southern Hemisphere Space Studies Program publicity flight last week, we are now planning to fly the Science flight this coming Sunday. This flight has two main experiments on it, the first being a Spectrometer which will collect atmospheric composition data for the university and the second is a downward facing camera with a 9DOF inertial measurement unit which is going to be used to create stitched together images from the flight area.

The flight will lift off at 10:00am ACDT on the 4th of February from Younghusband in the Murray Mallee ~150km east of Adelaide.

UPDATE 2018-02-05: This launch has been performed and was recovered successfully – a full writeup is incoming…

Payload Telemetry Details

As always amateur radio operators from across central and SE Australia are encouraged to get involved with telemetry reception and forwarding to the central habhub.org database.

There are two camera payloads as well as the RTTY and telecommand systems planned for this flight.

  • Primary:      434.650MHz RTTY 100 baud 8N1
  • SHSSP-1:   441.2MHz FSK 115k2 baud Wenet (downward facing camera)
  • VK5ARG:    443.5MHz FSK 115k2 baud Wenet (outward facing camera)

Information on how to receive, decode and relay the information is available as follows:

RTTY Payload

The auto-configure feature within dl-fldigi will automatically configure these settings for you once you pick the correct flight (“Horus 47 / SHSSP 2018 MkII”). The UKHAS tracking guide provides the information you need to set up a RTTY receiver:   https://ukhas.org.uk/guides:tracking_guide

WENET Picture Payloads

Information on setting up to receive the Wenet imaging payload is available here: https://github.com/projecthorus/wenet/wiki/Wenet-RX-Instructions-(Ubuntu-Debian)

Note that this is a few orders of magnitude more complicated than setting up for RTTY, and requires a machine running a recent version of Ubuntu, some Linux experience, and a RTLSDR+Preamp. You also need to be within 100-150km of the balloon to receive sufficient signal.  If you have a WENET capable ground station please concentrate on the 441.2MHz downlink to maximise the data we collect for the university.

Tracking and Viewing Information

If you want to follow the progress of the flights, you can visit www.habhub.org and access the live tracking information as events unfold. You can also access the live SSDV images  from ssdv.habhub.org/VK5ARG

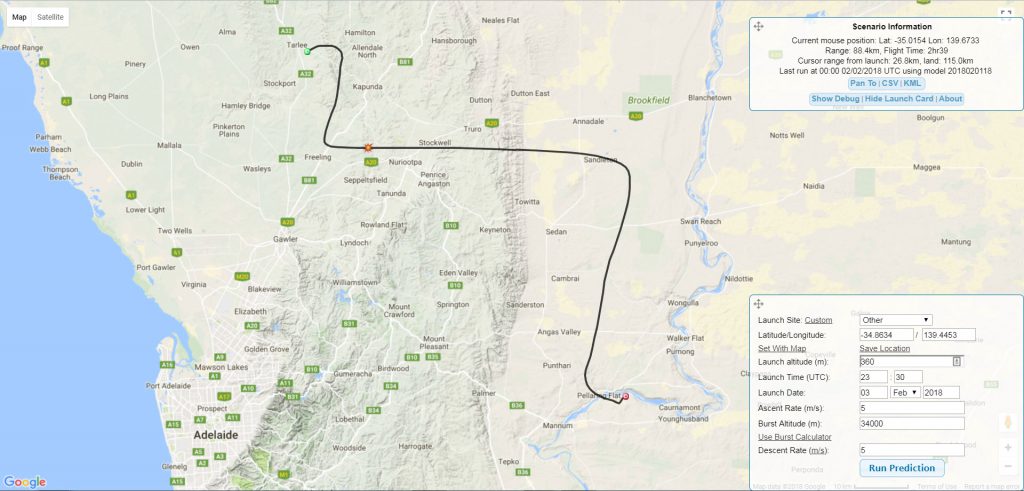

The predicted flight path at this time is:

Keep watching the AREG Website for details as things can always change the closer we get to lift off.
